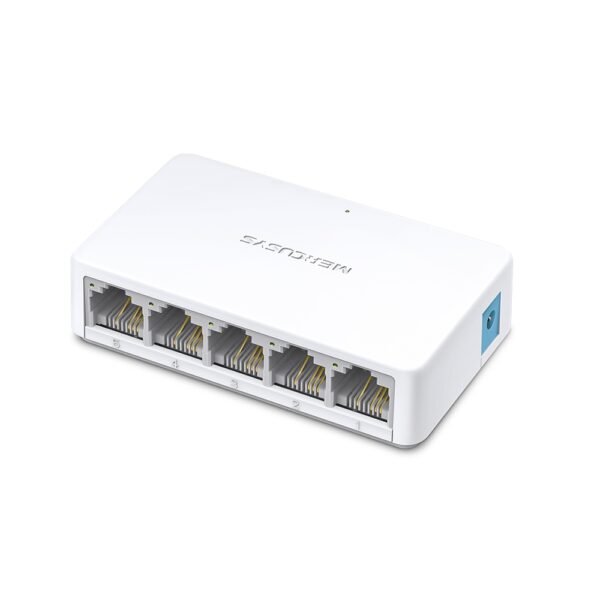

Switch Desktop 5-Porte 10/100Mbps V2.20

• 5 porte 10/100Mbps RJ45, con auto-negoziazione e auto MDI / MDIX
• Estensione semplice della rete cablata
• Design compatto per posizionamento flessibile
• Plug and play: nessuna configurazione richiesta

Software

Transfer Method

Store and forward

Hardware

Dimensioni (W X D X H)

82 x 49 x 21 mm

Interfaces

5 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX

External Power Supply

External power adapter

(Output: 5.0VDC/0.6A)

Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

CSMA/CD

Fan Quantity

Fanless

Data Rates

10/100Mbps at half duplex

20/200Mbps at full duplex

Buffer Capacity

768Kb

Jumbo Frame

2KB

Switching Capacity

1Gbps

LED

Ethernet (1, 2, 3, 4, 5), Power

Other

Certifications

CE, RoHS

Package Contents

5-Port 10/100Mbps Desktop Switch

MS105

Power adapter

Quick installation guide

Environment

Operating temperature: 0°C~40°C (32°F~104°F)

Storage temperature: -40°C~70°C (-40°F~158°F)

Operating humidity: 10% ~ 90% non-condensing

Storage humidity: 5%~90% non-condensing
