NT-TEG1008M

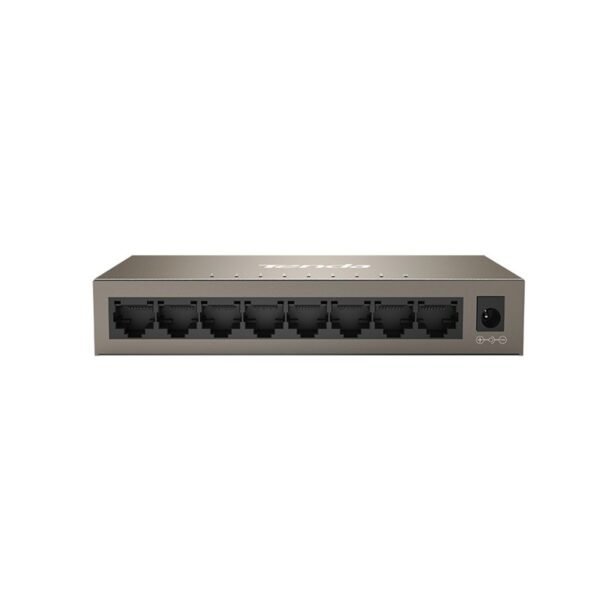

Tenda TEG1008M is a high-performance 8-port full Gigabit desktop Ethernet switch designed for Tenda's high-speed cascading scenarios for small and medium-sized surveillance, small and medium-sized businesses. Designed with a mini steel shell, it does not take up space and has a strong heat dissipation. Provides 8 10/100/1000 Mbps auto-negotiation ports, which increases transmission rate by 10 times, improves large file forwarding rate, and effectively solves problems such as video jams and picture loss in high-definition surveillance environments. The TEG1008M supports desktop/wall mount installation, plug and play, no setup, easy to use, and is ideal for improving network performance.





Tenda TEG1008M 8-Port Mini Gigabit Switch RJ45 LAN 10/100/1000M Wireless Ethernet Desktop HUB
Features:
1. Gigabit Speed
Provides 8 10/100/1000 Mbps auto-negotiation ports, which increases transmission rate by 10 times, improves large file forwarding rate, and effectively solves problems such as video jams and picture loss in high-definition surveillance environments.

2. Support 9-12V DC Input
9-12V DC input design,support centralized power supply and monitor power supply.

3. Wallmount & Plug-n-play
Support desktop and wallmount,plug-n-play,easy to use.

4. Metal Sheel, Stable Operation
The all-metal steel casing is sturdy and durable, and the heat dissipation effect is better to ensure the stable operation of the switch, prolong the service life of the product, more reliable for outdoor security monitoring.

Specification:
Transmission mode: Store-and-Forward
Switching Capacity: 16Gbps
Forwarding Rate
10Mbps: 14880pps
100Mbps: 148800pps
1000Mbps: 1488000pps
MAC Address Table: 4K

Interface:
Interface: 8 X 10/100/1000M RJ45 Ports
Network Media: Cat.5 UTP, Cat.5e UTP or better

Function:
Standard&Protocol: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
Protocol: CDMA/CD

Other Spec.:
LED indicator: 1 x Power,8 x Link/ActInput Power:
AC: 190-240V,50/60Hz
DC: 9-12V
Power Consumption: 5W(Maximum)
Operation System: for Windows 8 32/64 bit, Windows 7 32/64 bit, Windows xp 32/64 bit, Linux, MAC OS
Temperature:
Operating temperature: 0°C~40°C
Storage temperature: -40°C~70°C
Humidity:
Operating humidit: 10%~90% non-condensing
Storage Humidit: 5%~90% Non-Condensing
Size: 140 X 66.5 X 25.3mm/5.51 X 2.62 X 2.53"

Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3mm measuring deviation due to manual measurement.

1 X Gigabit Switch
1 X Power Adapter
